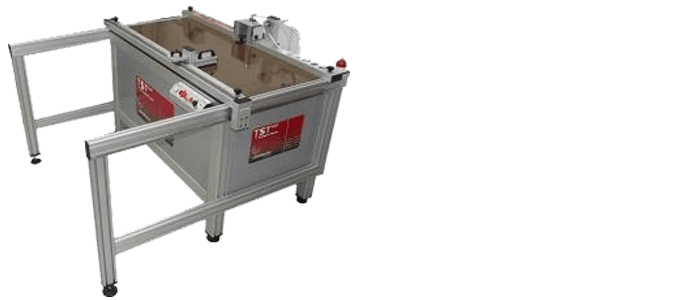

©DGT TST.16 SUPERTECH
©DGT TST.16 SUPERTECH is a special machine designed for:
- Milling: for 90° and 45°
- Trimming
- Diamond-Edge Polishing
- Chamfering
It can be accessorized with a series of Milling tips not included
This equipment is built with robust and wide worktable 1500 x 800 mm anodized aluminum profiles.
The size of the worktable is useful to work important sheets because the operator has more room to handle the pieces.
The machine rests on 6 feet.
The top is made up of a plastic laminated sheet equipped with positioning bars and prismatic sliding guides.
The electric spindle (Italian Brand the best in the production of these kind of spindles which offers great performance for precision and traction power) runs from to 0 to 18.000 rpm and it is controlled by an angle head handwheel to lift and lower the tools precisely.
The electric spindle allows to use tungsten and diamond milling tools.
It is prepared with automatic vacuum and air cooling system which start and arrest when the machine switch on and off.
Data Sheet

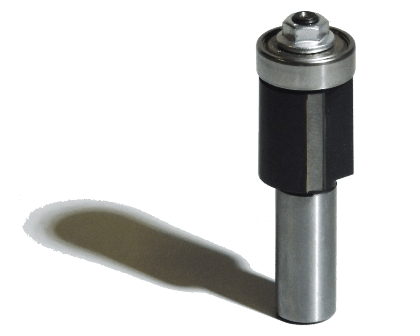

Diamond Trimmer 90-91°
F-001
Z2|H20|G12

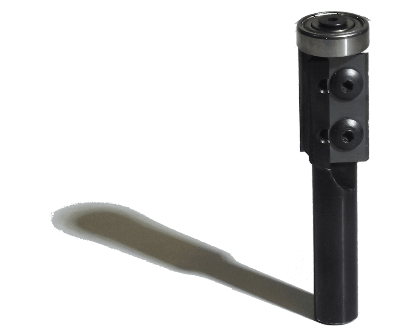

Milling Tip Standard Blades Trimming
F-002
with quote on the bearing
Z2|H30|G12

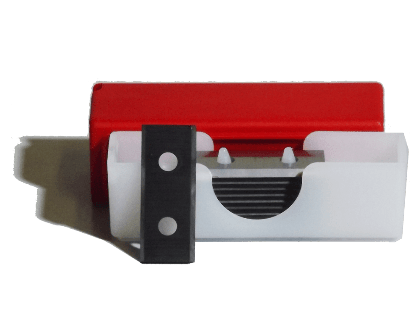

Blades for milling tips F1 / F11
F-003
kit 10pz
Milling Tip Trimming Blades
F-005
with -0.1mm quote on the Bearing
Z2|H30|G12

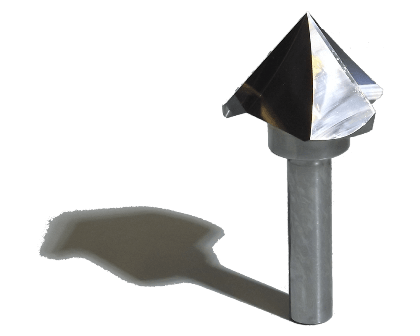

Milling Tip DGT 44° Cut
F-006
Z3|H20|G12
Milling Tip DGT 87° Cut
F-007
Z4|H20|G12
Milling Tip DGT 89° Cut
F-008
Z4|H30|G12
Milling Tip DGT 44,5° Cut
F-009
Z3|H20|G12

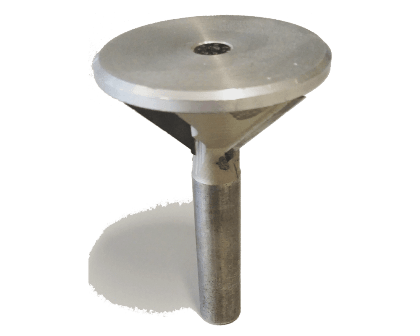

Milling Tip DGT 44° Reverse Cut
F-010
Z2|H20|G12

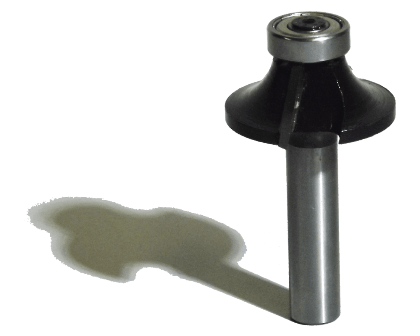

Milling Tip 15° Curving Bevel
F-011
Z2|H20|G12

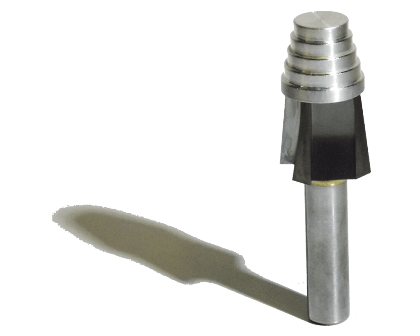

Milling Tip DGT 84° Cut
F-012
Z4|H20|G12

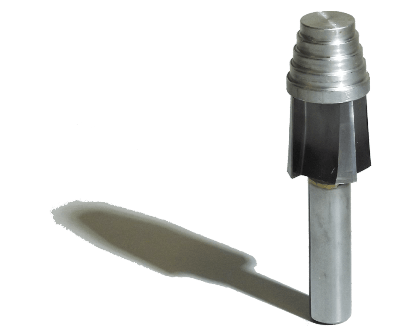

Milling Tip DGT 89,5° Cut
F-013
Z4|H20|G12

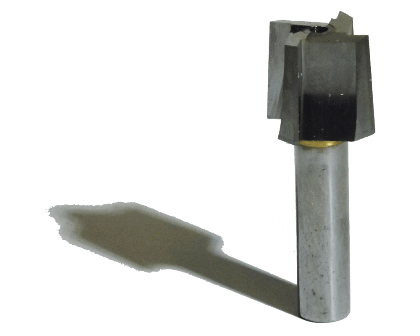

Milling Tip DGT 87° CNC Cut
F-014
Z4|H20|G12

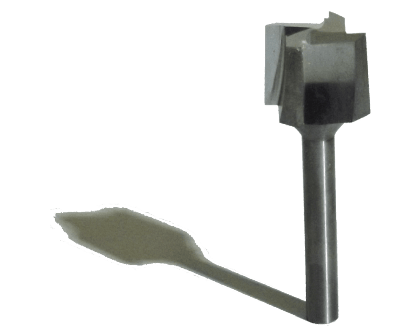

Milling Tip DGT 87° CNC G6 Cut
F-015
Z4|H15|G6

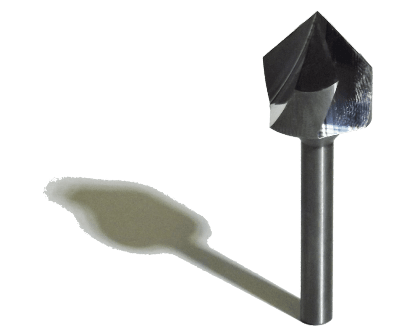

Milling Tip DGT 44° CNC G6 Cut
F-016
Z3|H10|G6

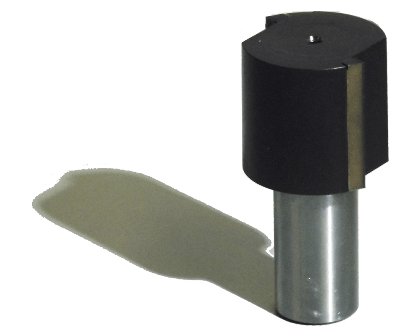

Milling Tip 90° Diamond Polisher
F-017
Z2|H25|G16

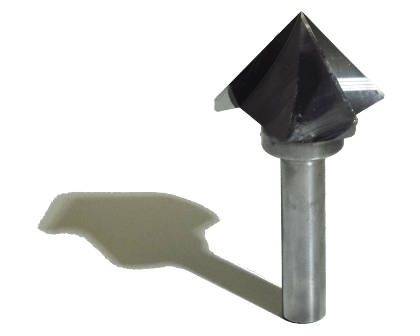

Milling Tip DGT 44,3° Cut
F-021
Z3|H20|G12

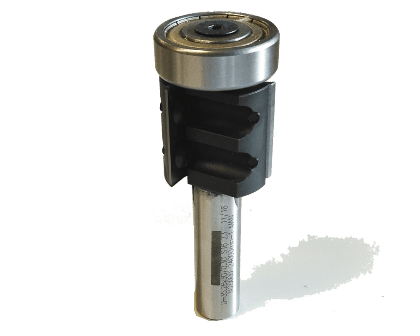

Milling Tip DGT HiPerformance Trimming
F-023
30|S16|Z3
Mini Milling Tip 44° Cut
F-024
Z3|H10|G12
Mini Milling Tip 45° Cut
F-025
Z3|H10|G12

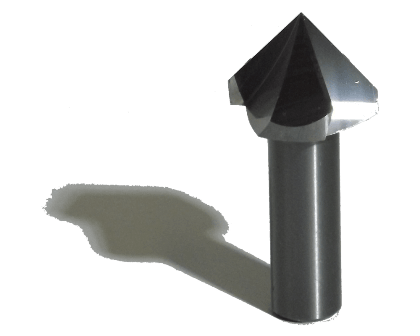

Mini Milling Tip 44.5° Cut
F-026
Z3|H10|G12

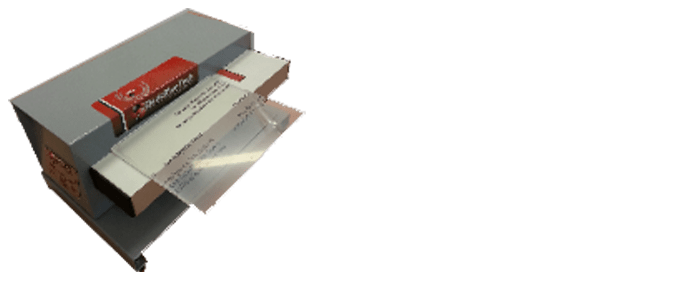

©DGT REMOVER
The revolutionary equipment to REMOVE easily the protective film of the sheets.
For laser-cut also.

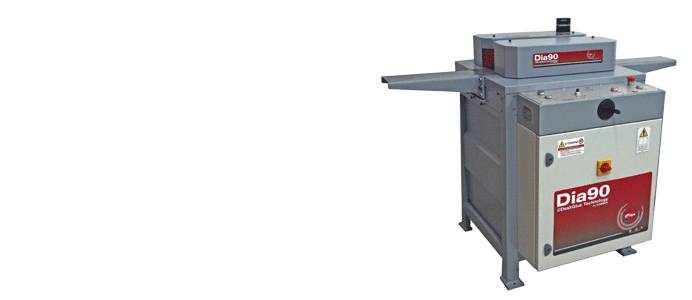

©DGT DIA90
This equipment is designed and manufactured to polish and grind edges in plastic materials such as methacrylate, polycarbonate and similar.
It can be used with sheets with a thickness up to 60 mm. The operating speed is adjustable.
A specific detecting device senses the presence of a sheet being processed so that the machine can operate in automatic mode until the cycle ends.
Sheets with the same thickness can be processed in continuous mode.
The equipment may come with a natural, sintered or satin-finished diamond not included.
Workable thickness 60mm.
Asportation 0.7mm.
Electro spindle kw.1.1 - CV 1.5
Speed of work from 0.4 to 2.5 mt./min
Service wrenches
Weight kg. 410
Data Sheet

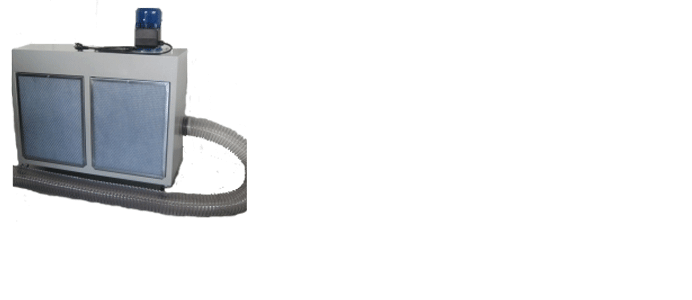

©DGT CODEKUBIK ASPIRATOR
DGT CODEKUBIK ASPIRATOR is a special abstractor adaptable directly to ©DGT TST.13 and ©DGT DIA90.
Connected directly to the machine, it will start working automatically when you decide to switch on the engine of the machine at which it is connected.
It will stop working in the same moment in which you decide to arrested the engine of the machine.
Techincal Specifications:
Monophase motor
Power Kw 0.37
Suction power 1200 m3/h
Noise dBA 65
Weight kg 42
Dimensions max 900x400x950mm
Suction hole diameter 100mm

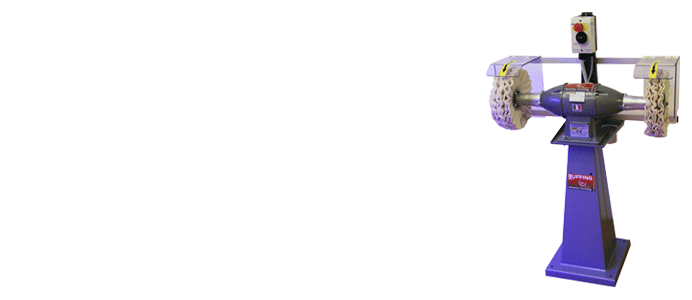

©DGT BUFFING MACHINE
Polishing machine made up of a floor standing support with a 20 mm diameter shaft which can be equipped with n° 2 roughing and n° 3 polishing brushes (300 mm diameter self-cooling brushes per type NOT INCLUDED).
The features of the equipment include: 1.5 hp (380 volt) power, 1.400 rpm speed, a turn-off emergency button and transparent safety flaps.
Accessorizes not included
Data Sheet

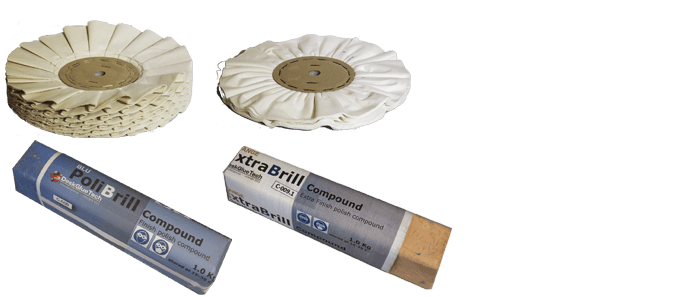

©DGT BUFFING MACHINE ACCESSORIES
3 Plush Ventilated Clothes Spiral 300 x 20 mm
2 Ventilated Clothes Double Spiral for Brush polish 300 x 20 mm
Polibrill Blue Polishing paste 1 kg
Extrabrill Orange Polishing paste 1 kg
